3D digitizing and full-field scanning with ATOS

ATOS Professional is a process-safe software solution that controls the ATOS 3D digitizer and produces precise 3D surface data. The powerful software and the ATOS 3D digitizer are designed to work seamlessly and 3D data is available directly after fringe projection. Single scans are automatically combined using a process-safe workflow based on a combination of reference points and surface matching.

ATOS Professional is a knowledge base - it guides the operator through the complete scanning procedure and provides support for setting up new measuring tasks using guided project creation.

  • Provides application-related parameter settings
  • Optimizes start-up times for measuring and evaluation tasks
  • Higher levels of safety for operator based on pre-defined templates

Complete workflow in one software application

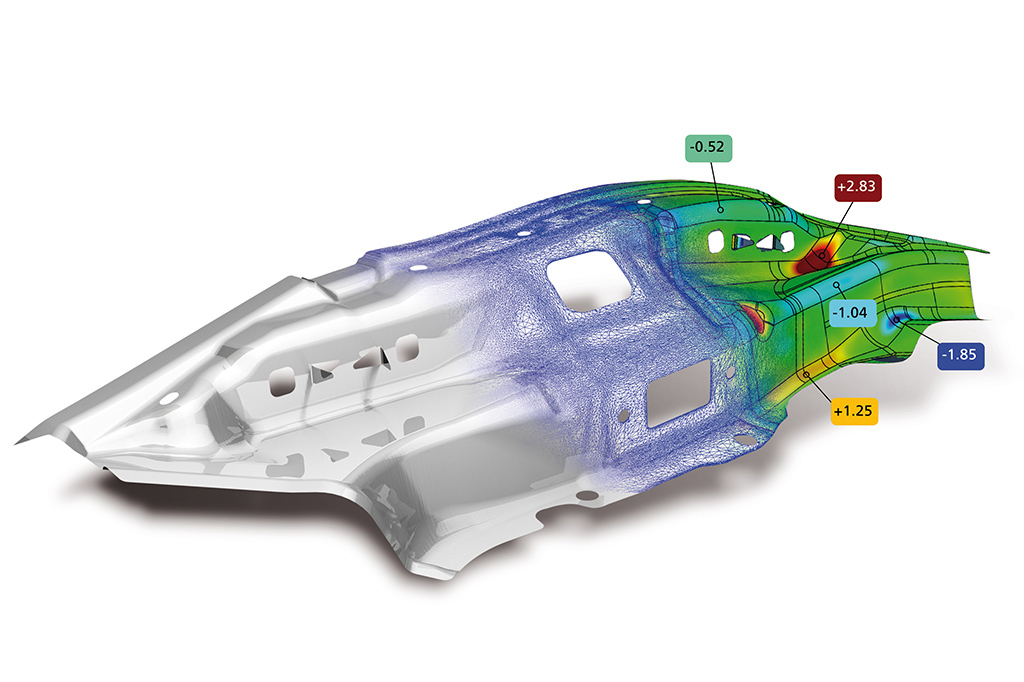

The ATOS Professional software is used to run the sensor head, to process the 3D point cloud and to edit and post-process the data. The simple graphical user interface helps support today's demanding tasks in quality control, manufacturing processes and reverse engineering. ATOS Professional features include: Sensor control, polygon mesh generation and editing, sectioning, feature and character line detection and primitive generation. For quality control and result analysis, tools such as CAD data import, import of measuring plans, registration, full-field deviation plots, section-based analysis, deviation of individual points, calipers, angles and diameters and report creation are available.

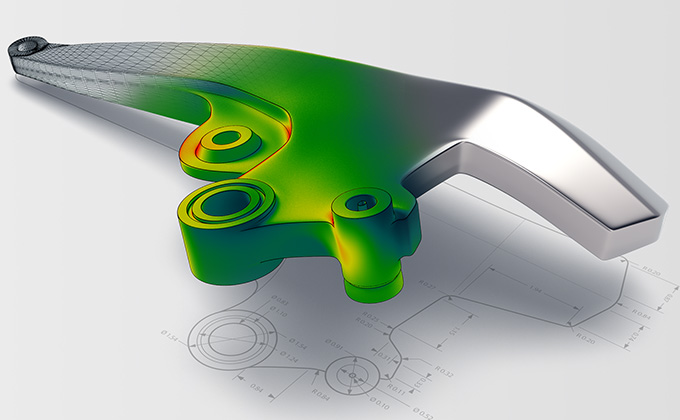

3D Inspection

Measurement data from ATOS Core forms the basis for the 3D inspection and quality assurance of parts and components. The 3D digitizer scans the complete surface of a component without contact. Using millions of measuring points, ATOS software automatically calculates the 3D coordinates in the form of a high-resolution point cloud.

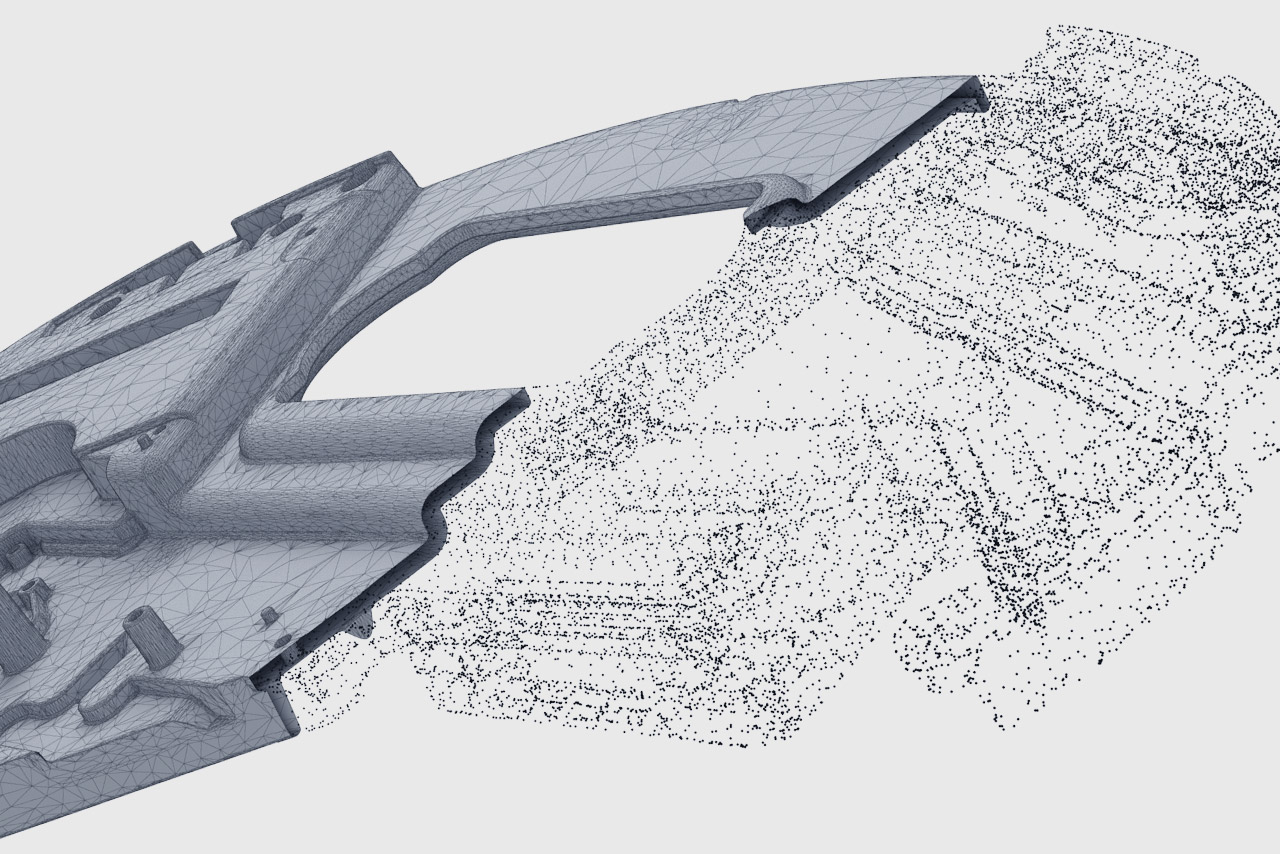

High-quality 3D mesh data

Successful and cost-effective post-processing is based on the quality of 3D mesh data. ATOS Professional provides the unique algorithms for highest 3D mesh data quality combining small data size with accentuated fine details.

Complete inspection package

ATOS Professional contains all the features of GOM Inspect Professional making ATOS Professional the complete, process-safe, parametric, traceable measuring and evaluation software for dimensional analysis of ATOS 3D data.
