API RADIAN R20 LASER TRACKER

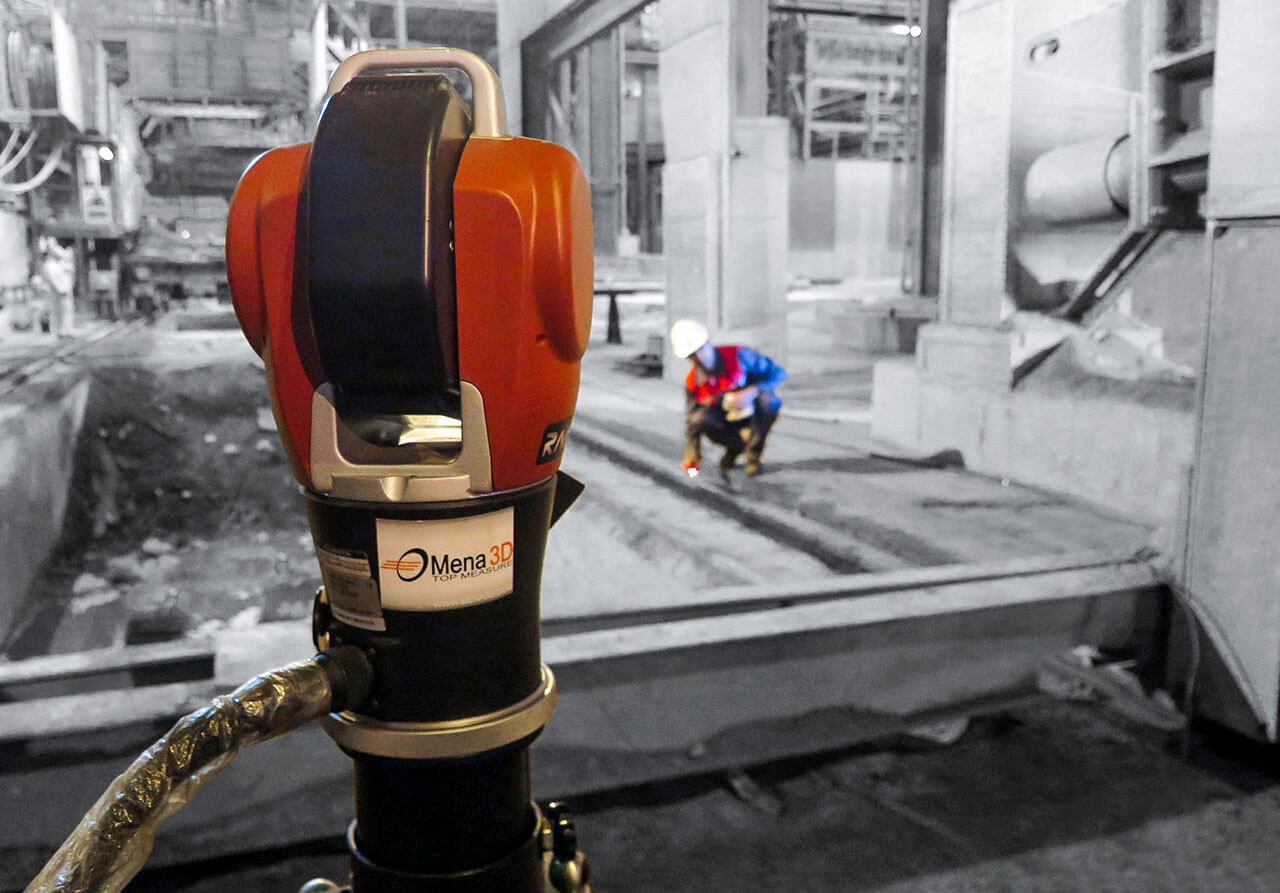

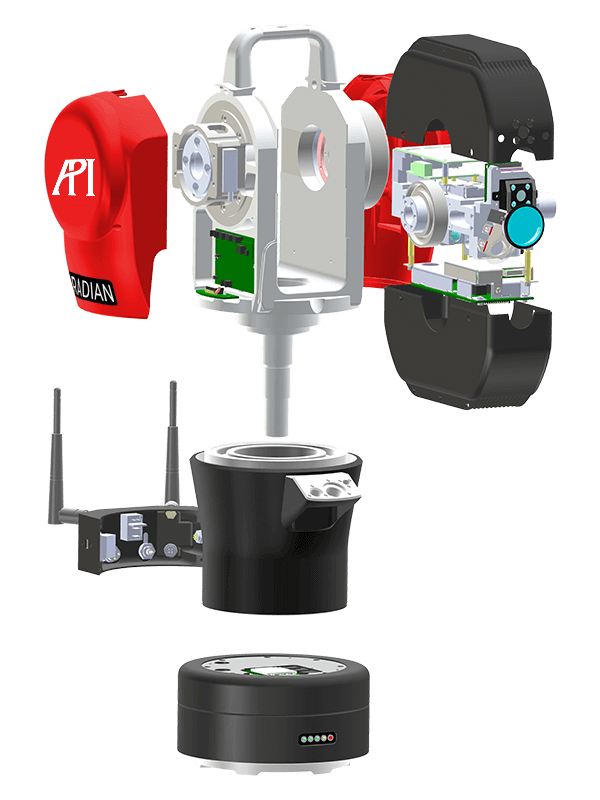

Smarter. Faster. More Accurate. More Flexible. Our exclusive on-the-shaft mounting of the laser head eliminates bending mirrors and thermally induced errors, and increases accuracy and stability.


Radian™ includes all the characteristics of API’s advanced laser tracking technology:

  • Highest precision and accuracy
  • Largest working volume
  • Lowest cost of ownership
  • Still the Smallest IFM/ADM laser tracker
  • Dynamic continuous-point measuring

New Efficiencies Radian™ Advances the Technology and Efficiency of Laser Trackers.

Radian™ Includes:

  • Multiple SMR identification
  • Mounting versatility: mount sideways, upside down, underneath, or directly on your part
  • Complete suite of advanced targets and accessories

INNOVO™ Includes New On-Board Intelligence:

  • Activity Advisor alerts you of the Radian™ laser tracker’s warm up status, key operating and environmental conditions, and more
  • Advanced Self-Diagnostics detects setup and workplace irregularities before they become critical
  • ADM-Maxx™ ensures more accurate measurements over longer distances

INNOVO™ Technology ensures that Radian™ is ready to measure when you are.

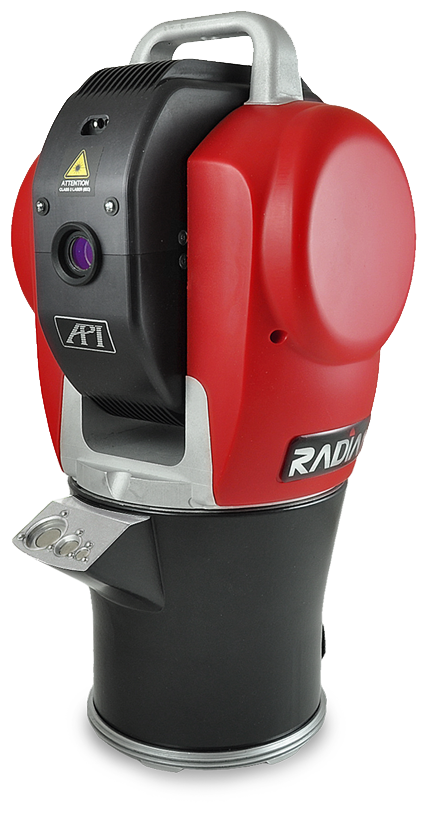

API Radian R20 Laser Tracker

System Performance

  • Range Azimuth: ± 320°
  • Range Elevation: + 79° / -59°
  • Angular Resolution: ± 0.018 arcsec
  • Angular Accuracy: 3.5 μm/m
  • Resolution: 0.1 μm
  • Internal Level Accuracy: ± 2 arcsec

Laser

  • HeNe Laser (IFM): Classe II (eye safe)
  • Resolution: 0.08 μm
  • Accuracy: ± 0.5 lilim
  • IR Laser (ADM-Maxx): Classe I (eye safe)
  • Resolution: 0.1 μm
  • Lock-on Accuracy: ± 10 μm or 1 lilim

Dimensions

  • Tracker Weight: 9 kg
  • Tracker Size: 177 mm x 177 mm x 355 mm
  • Controller Weight: 3.2 kg
  • Controller Size: 110 mm x 160 mm x 310 mm

Range of Measurements

Linear Range (Diameter): 40 m (131 ft)

Accuracy

Static Measurement (IFM): ± 10 μm or 5 ppm (2 sigma)


I-Vision

Working Range: 0 - 25 m (typical)

Field of Vision: 30° (diagonal)

Refrence: www.apimetrology.com
